UMI Performance Stage 4 Handling Kits GBF005-2-B

$2,799.00

Suspension Handling Package, Stage 4, Black Powdercoated, Buick, Chevy, Oldsmobile, Pontiac, Kit

74502 people are online viewing
Add to wishlist
Category:

Description

Overview

Brand: UMI Performance
Manufacturer’s Part Number: GBF005-2-B
Part Type: Suspension Handling Packages
Product Line: UMI Performance Stage 4 Handling Kits
Summit Racing Part Number: UPI-GBF005-2-B
Front Coil Springs Included: Yes
Rear Coil Springs Included: Yes
Rear Leaf Springs Included: No
Front Shocks/Struts Included: Yes
Front Shock Type: 361-position adjustable monotube
Rear Shocks/Struts Included: Yes
Rear Shock Type: 361-position adjustable monotube
Front Sway Bar Included: Yes
Front Sway Bar Color: Black
Front Sway Bar Type: Solid
Front Sway Bar Diameter (in.): 1.250 in.
Front Sway Bar Diameter (mm): 31.75 mm
Rear Sway Bar Included: Yes
Rear Sway Bar Color: Black
Rear Sway Bar Type: Solid
Rear Sway Bar Diameter (in.): 1.000 in.
Rear Sway Bar Diameter (mm): 25.40 mm
Tie Rod Sleeves Included: No
End Link Bushings Included: Yes
Rear Leaf Spring Bushings Included: No
Sway Bar Bushings Included: Yes
Upper Trailing Arms Included: Yes
Lower Trailing Arms Included: Yes
Trailing Arm Mount Braces Included: Yes
Panhard Bar Included: No
Torque Arm Included: No
Upper Control Arms Included: Yes
Lower Control Arms Included: Yes
Control Arm Style: Tubular
Control Arm Material: Steel
Control Arm Color: Black
Front Strut Tower Bar Included: No
K-Member Included: No
K-Member Support Brace Included: No
Rear Strut Tower Bar Included: No
Subframe Connectors Included: No
Chassis Stiffener Included: No
Calipers Included: No
Rotors Included: No
Brake Pads Included: No
Brake Lines Included: No
Wheel Studs Included: No
Center Link Included: No
Spindles Included: No
Inner Tie Rod Ends Included: No
Outer Tie Rod Ends Included: No
Bushing Material: Delrin®
Bushing Color: Black
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Notes: 550 lbs./in. front springs.

UMI Performance Stage 4 Handling Kits

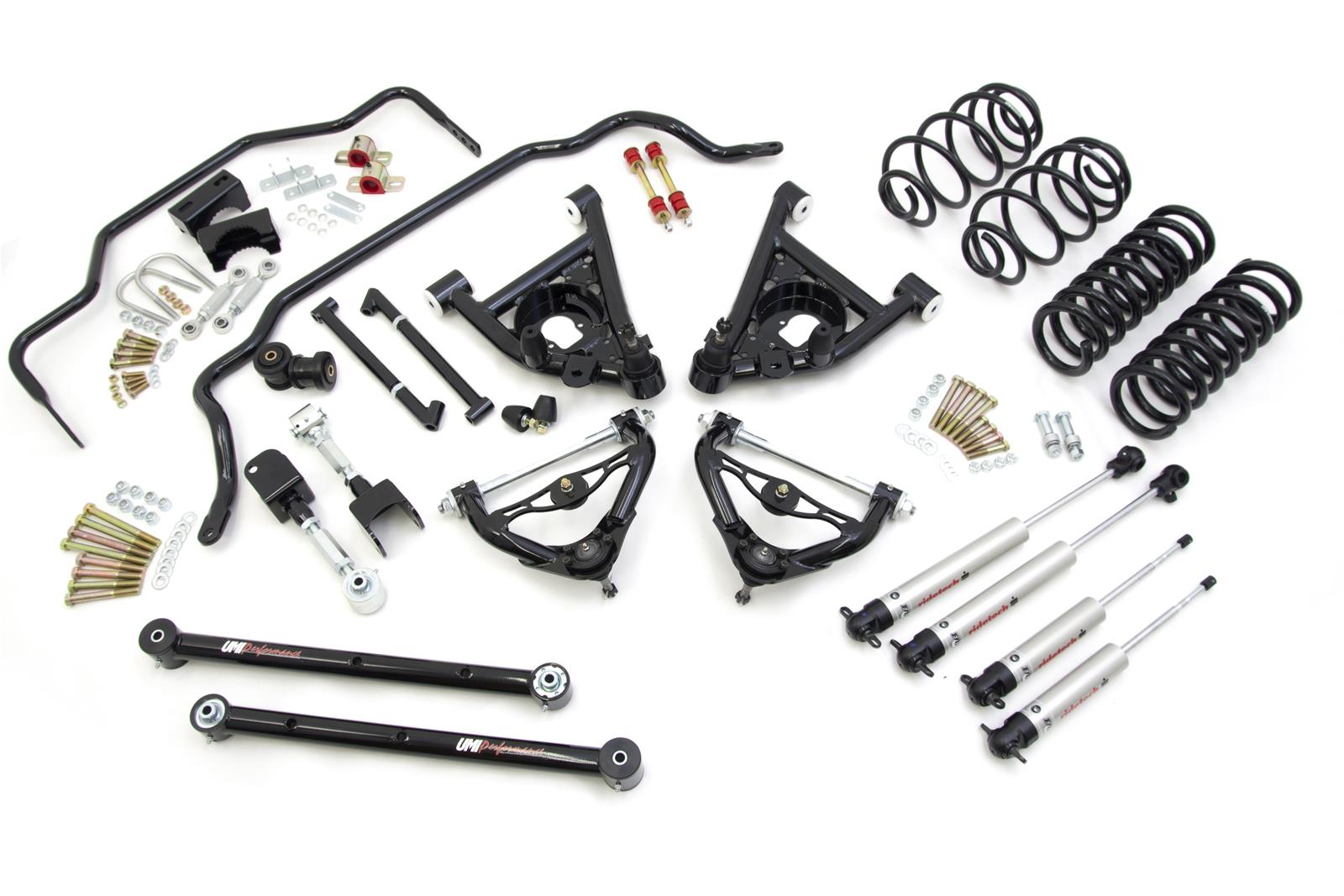

UMI Performance Stage 4 handling kits give you everything you need to transform your ride into a high performance handling machine, with the adjustability to perform at the track or cruise around with family and friends. These kits consist of UMI’s proven upper and lower tubular A-arms loaded with 1/2 in. taller upper ball joints, and Viking’s new front hybrid coilovers with double adjustable shocks. They provide you with a precise steering feel and straight-line stability, as well as ride height, compression, and rebound adjustment.

UMI kits also include:

* Front chromoly sway bar
* Rear tubular pro-tour bar
* Rear adjustable tubular frame braces
* Lower trailing arms
* Fully adjustable Roto-Joint upper control arms
