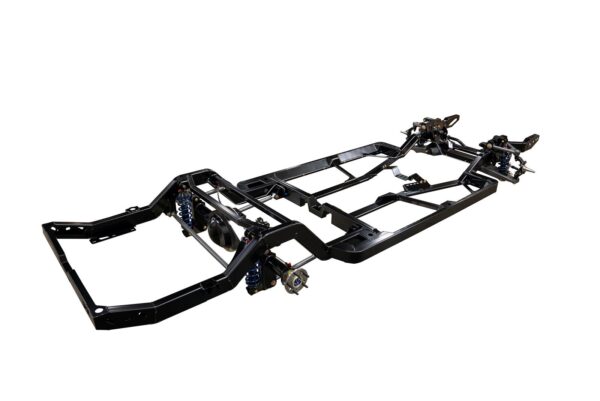

Roadster Shop 1968-72 Chevelle SPEC Chassis Kits
SPEC is an engineering focused approach using the latest in manufacturing technology to build the lightest, strongest, and easiest to install complete chassis system. These technologies have been used to streamline procedures, resulting in lower cost and shorter lead times. The SPEC independent front suspension is engineered to deliver outstanding performance wrapped up in user-friendly package. A completely new proprietary suspension geometry has been designed to provide the best balance of ride quality and performance in its class. Roadster Shop offers SPEC chassis kits for 1968-72 Chevelle models.
Product benefits:
* No kinks, bends or stressed areas that are prone to flex like mandrel bent tubing
* Ability to contour to stock floors for a low-profile design.
* Stronger, lighter, and more precise
* CNC-located factory mounts built into the frame for easy, vehicle-specific installation
* Frame rail designs to accommodate mini-tubs
* Aggressive 7 in. ride height for the modern pro-touring look
* 100 percent bolt-on application
Standard features:
* RS exclusive “Laser Rails” precision CNC laser-cut and contoured
* Crossmembers and chassis bracing to allowing for 3 in. exhaust
* Engine mounts for SBC, BBC, or optional LS & LT
* Adjustable, drop out trans mount
* Utlizes factory body, bumper, and core support mounts for a true bolt-on installation
* SPEC IFS
* RS SV by Fox fixed valve coilovers
* Power rack and pinion steering
* Easy-to-adjust upper A-arm eccentric mounts for fast and accurate alignments
* Wilwood Pro Spindle
* Parallel 4-Bar rear suspension
* RS SV by Fox fixed valve coilovers
* Ford 9 in. housing with 31 spline axles
* Narrowed rear frame rails allow for wider rear tires when mini-tubbed
