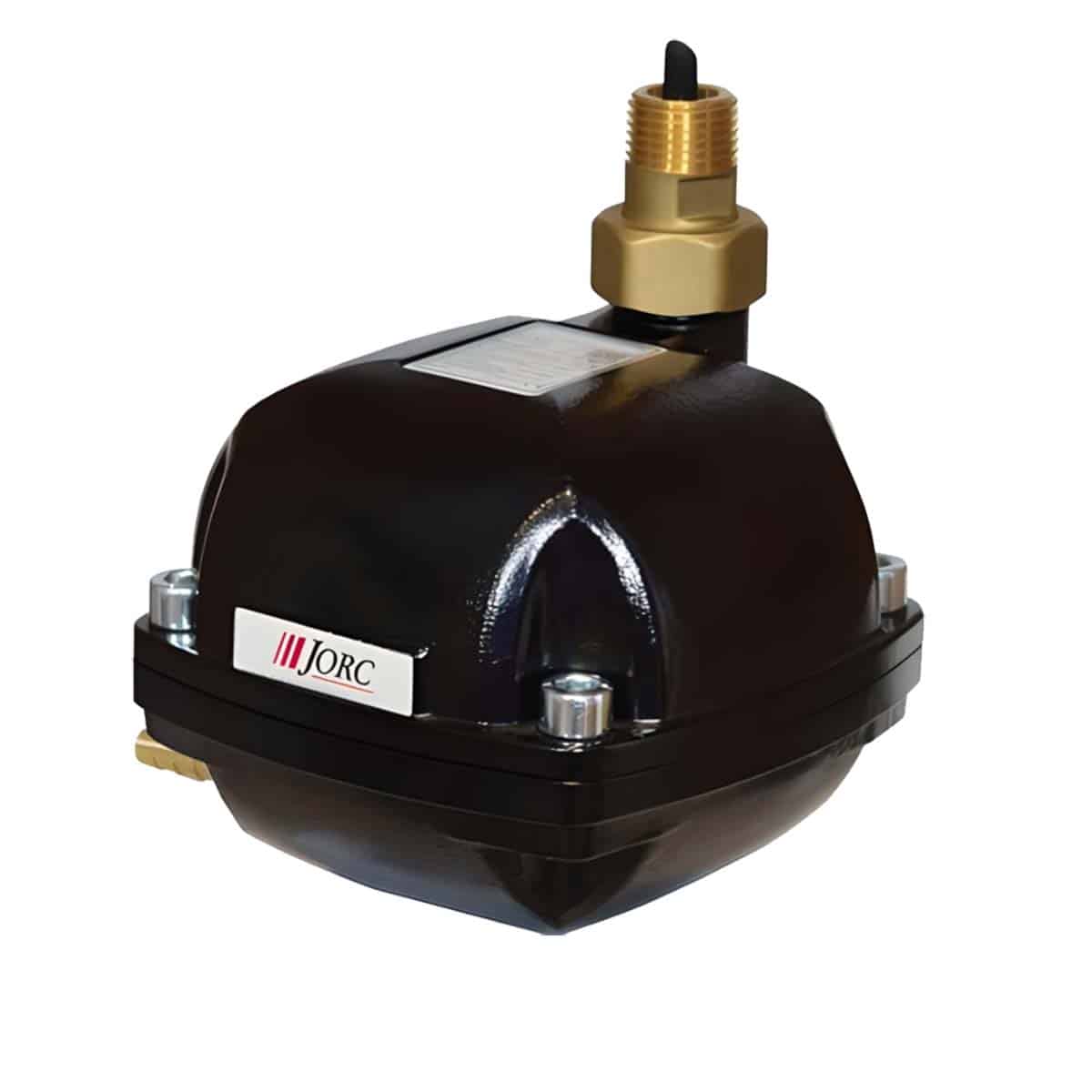

MINI-MAG Magnetic Drain
The Mini MAG is the optimum choice in compact energy saving condensate drains. Unlike timed or electronic drains which require electricity to operate, the Mini MAG operates using a magnetic level sensor providing energy saving zero air loss operation without the need for a power source.
Perfectly suited for coolers, refrigerated dryers, liquid separators, and especially
compressed air filters (due to its compact size), the Mini MAG uses a 2/2 way level controlled magnetic actuator which opens and closes a direct cylinder valve, discharging the condensate from your compressed air system without losing any of your valuable compressed air.
The Mini MAG meets the demands of virtually any application regardless of the condensate flow. It fits any compressed air filter regardless of size without any set up or adjustment.
FEATURES
Extremely compact
No electricity required
No control air required
Wide discharge orifice
Rugged aluminum housing
Serviceable components
BENEFITS
Easy to install in tight locations.
Easy to install. No operating cost. Perfect for all applications, especially those where electricity is not available.
Reliable operation with virtually any condensate.
Lightweight, yet strong and durable.
With step by step maintenance instructions.
| Maximum Filter Capacity | 7000 scfm | |
|---|---|---|
| Maximum Condensate Capacity (at 100 psig) | 0.9 gal/min | |
| Orifice Diameter | 2.0 mm | |
| Discharge Valve | Type | 2/2 Way Direct Acting |
| Seal Material | Viton (FPM) | |
| Minimum | 0 psig | |
| Operating Pressure | ||
| Maximum | 230 psig | |
| Condensate | Minimum | 35oF |
| Temperature | Maximum | 122oF |
| Inlet | 1/2” NPT (F) | |
| Connections | ||
| Outlet | 1/8”NPT (F) or hose | |
| Housing Material | Aluminum | |
* Consult JORC for special elements and/or 24/7 applications.
