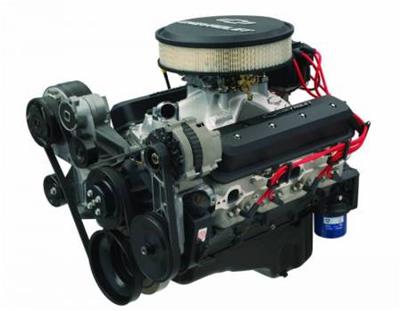

Chevrolet Performance 350 ZZ6 405 HP Turn-Key Crate Engines 19433042

$6,350.00

Crate Engine, ZZ6 350 Turnkey Long Block Crate Engine, 4 Bolt Main, Cast Iron Block Fast Burn Heads, Harmonic Balancer, Chevy, Each

6545 people are online viewing
Add to wishlist
Category:

Description

Overview

Brand: Chevrolet Performance
Manufacturer’s Part Number: 19433042
Part Type: Crate Engines
Product Line: Chevrolet Performance 350 ZZ6 405 HP Turn-Key Crate Engines
Summit Racing Part Number: NAL-19433042
Crate Engine Family: Chevy Small Block
Actual Engine Displacement: 5.7L/350
Crate Engine Cylinder Head Material: Aluminum
Engine Block Material: Cast iron
Advertised Compression Ratio: 9.72:1
Assembled: Yes
Engine Balance: Internal/External
Cam Style: Hydraulic roller, OE roller
Rear Main Seal Style: 1-piece
Intake Manifold Included: Yes
Intake Manifold Style: Carbureted
Cylinder Heads Included: Yes
Carburetor Included: Yes
Throttle Body Included: No
Distributor Included: Yes
Oil Pan Included: Yes
Valve Covers Included: Yes
Timing Cover Included: Yes
Water Pump Included: Yes
Harmonic Balancer Included: Yes
Flexplate Included:  Yes
Flywheel Included: No
Air Cleaner Included: Yes
Spark Plugs Included: Yes
Spark Plug Wires Included: Yes
Computer Included: No
Wiring Harness Included: No
Water Pump Style: Long
Supercharger Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Not intended for marine applications. Engines installed in vehicles registered and normally operated outside of the United States carry no warranty.

Chevrolet Performance 350 ZZ6 405 HP Turn-Key Crate Engines

Chevrolet Performance introduces the ultimate ‘ZZ’ crate engine! This 350 ZZ6 405 HP Turn-Key powerplant is one of the most powerful 350-based crate engines in the more than 25-year history of the ZZ crate engine lineup. Innovation in motion, the engine features: aluminum Fast Burn cylinder heads; LS-style beehive valve springs for greater high-rpm performance; and a rating of 405 hp and 406 lbs.-ft. of torque—more than any GEN-I Small-Block engine ever offered in a production Chevrolet muscle car or Corvette!

KEY SPECS:

Brand: Chevrolet Performance Parts
Crate Engine Type: Turn-Key Crate Engine
Block: Cast Iron, 4-bolt main
Engine Displacement: 350 cu. in.
Horsepower: 405 hp
Compression Ratio: 9.7:1
Torque: 406 lbs.-ft.
Maximum RPM: 5,800
Camshaft Type: Hydraulic Roller Tappet
Cylinder Head Material: Aluminum
Piston Material: Hypereutectic Aluminum
Crankshaft Material: Forged Steel
Spark Plug Style: Angle
Combustion Chamber Volume: 62cc
Camshaft Duration (.050 in.): 208 degree intake / 221 degree exhaust
Camshaft Lift (in.): .474 intake / .510 exhaust
Bore x Stroke (in.): 4.000 in. x 3.480 in.
Carburetor Included: Yes
Intake Manifold Included: Yes
Distributor Included: Yes
Connecting Rod Material: Powdered Metal
Warranty: 2-year / 50,000 mile
Valve Covers Included: Yes
Assembled: Yes
Engine Balance: External
Cylinder Heads Included: Yes
Rear Main Seal Style: 1-piece
Throttle Body Included: No
Oil Pan Included: Yes
Timing Cover Included: Yes
Water Pump Included: Yes
Harmonic Balancer Included: Yes
Flexplate Included: Yes
Flywheel Included: No
Air Cleaner Included: Yes
Spark Plugs Included: Yes
Spark Plug Wires Included: Yes
Computer Included: No
Wiring Harness Included: No
Cylinder Head Style: Assembled
Intake Valves Included: Yes
Intake Valve Diameter: 2.000 in.
Exhaust Valves Included : Yes
Exhaust Valve Diameter: 1.550 in.
Camshaft Included: Yes
Cylinder Heads: Fast Burn with LS-style Beehive Springs
Rocker Arms: Aluminum roller
Rocker Arm Ratio: 1.5:1
Recommended Fuel: Premium

Applications

Make: CHEVROLET
Engine Type: V8
Engine Size: 5.7L/350
Engine Family: Chevy small block Gen I
Cylinder Head Type: Chevrolet Performance Fast Burn
Fuel Type: GAS
Aspiration: Naturally Aspirated
Valves Per Engine: 16
Application Notes: Not intended for marine applications. Engines installed in vehicles registered and normally operated outside of the United States carry no warranty.
